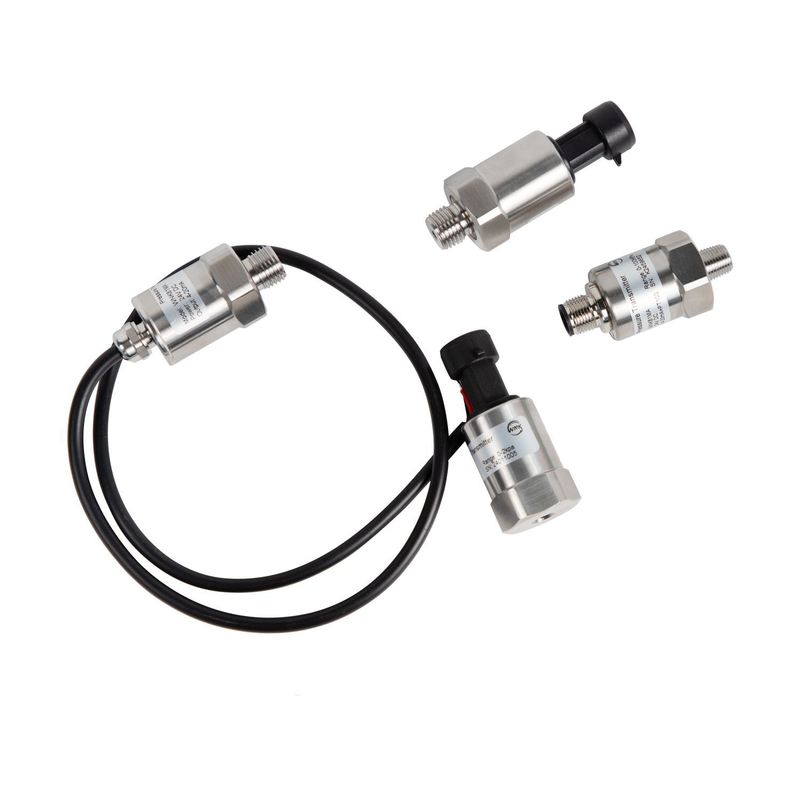

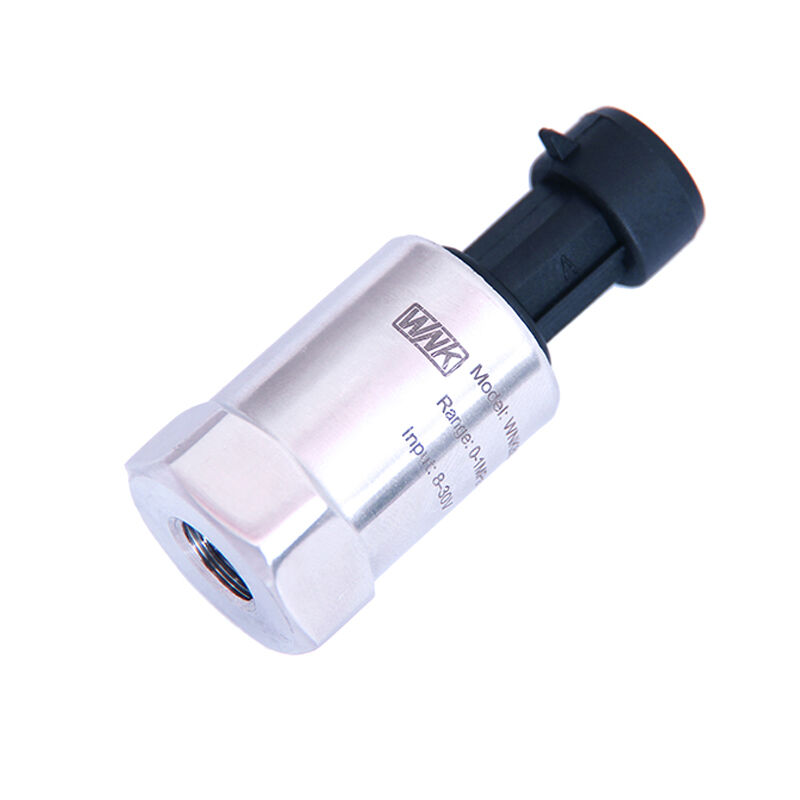

Name: WNK 4~20mA 0.5-4.5V Refrigerant Pressure Sensor for R410a R22 R134a R404a
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: Wnk80ma
Price: 10.00 USD
Availability: InStock

Evde > Ürünler > HVAC Basınç Sensörü >

WNK 4~20mA 0.5-4.5V Refrigerant Pressure Sensor for R410a R22 R134a R404a

R410a refrigerant pressure sensor

4-20mA HVAC pressure sensor

R134a compatible pressure transducer

Menşe yeri:

Anhui, Çin

Marka adı:

WNK

Sertifika:

CE, ROHS

Model numarası:

Wnk80ma

Bizimle İletişim

Bir İndirim İste

Ürün Ayrıntıları

Garanti:

1 Yıl

Başvuru:

Klima Soğutucu Akışkan Hvac

Koruma Sınıfı:

IP65 /67

Çıkış:

4- 20mA, 0-5V, 1-5V, 0,5-4,5V, 0-10V

Muhafaza malzemesi:

304SS, 316L, 316SS

Ölçülen medya:

Sıvı, Gaz, Buhar, Yağ, Hava

OEM Hizmeti:

OEM, ODM, özelleştirme mevcut

Güç Kaynağı:

5VDC, 12-32VDC

Basınç aralığı::

0-15MPa

Çalışma sıcaklığı::

-40~85 ℃

Kesinlik:

%0,5FS %1FS

Liman:

Şanghay/Ningbo

Vurgulamak:

R410a refrigerant pressure sensor

4-20mA HVAC pressure sensor

R134a compatible pressure transducer

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Fiyat

$19.00/Pieces 1-49 Pieces

Ambalaj bilgileri

Ana karton başına 100 adet

Teslim süresi

5-8 İŞ GÜNÜ

Ödeme koşulları

T/T, Western Union, MoneyGram, PayPal

Yetenek temini

Aylık 5000 Adet/Adet Klima için Basınç Sensörü

İlgili Ürünler

video

Low Cost Water Pressure Sensor Transmitter Manufacture Pressure Measuring Instruments

En İyi Fiyatı Alın

video

WNK Stainless Steel Universal 4-20ma Pressure Transmitter NPT1/4 0-5V Output 0-200 Psi Air Pressure Sensors Transducer

En İyi Fiyatı Alın

video

WNK HVAC Soğutma Basınç Algılayıcı Basınç Göndericisi 0.5-4.5v

En İyi Fiyatı Alın

video

WNK 4-20ma 0.5-4.5V HAVC Hava Kompresörü Su Kamyonu Yakıt Yağı Fren Basınç Sensörü

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

What role does the sensor play in the air compressor?

The compressor (compressor), as the heart of the refrigeration system, is a driven fluid machine that lifts low-pressure gas into high-pressure gas. The low-temperature and low-pressure refrigerant gas sucked from the suction pipe is compressed by the rotation of the motor to discharge the high-temperature and high-pressure refrigerant gas to the exhaust pipe to provide power for the refrigeration cycle. Thus, a refrigeration cycle of compression → condensation (exotherm) → expansion → evaporation (heat absorption) is realized. The compressor is divided into piston compressor, screw compressor, centrifugal compressor, linear compressor and so on.

During the work, the actual responsibility of the compressor is to increase the pressure and increase the state of the suction pressure to the state of the exhaust pressure. Compression ratio is a technical expression of pressure difference, which means the absolute pressure on the high pressure side divided by the absolute pressure on the low pressure side. The compression ratio must be calculated using an absolute pressure value. In order to avoid making the calculated value of the compression ratio negative, the absolute pressure must be used instead of the gauge pressure when calculating the pressure ratio. It makes sense to use an absolute pressure value to make the compression ratio calculation a positive value

Large central air conditioning, refrigeration equipment, in order to achieve automatic control of the machine, the lowest energy consumption ratio, the operation of the equipment needs to be fully monitored, such as temperature, refrigeration medium pressure.
The pressure sensor mainly measures the pressure of the refrigerating medium online on the refrigerating equipment, and transmits the pressure to the control system of the main machine in the form of electrical signals, so as to reflect the compression operation state of the equipment, to realize the automatic control of the product, and to reflect the consumption of the equipment as soon as possible.
