Name: WNK 0-10bar 150Psi Npt 1/8 0.5-4.5V Water Pressure Sensor Transducer for Air Gas
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: Wnk80ma
Availability: InStock

Evde > Ürünler > IOT Basınç Sensörü >

WNK 0-10bar 150Psi Npt 1/8 0.5-4.5V Water Pressure Sensor Transducer for Air Gas

0-10bar water pressure sensor

1/8 NPT pressure transducer

4.5V air gas sensor

Menşe yeri:

Chian

Marka adı:

WNK

Sertifika:

CE/ROHS

Model numarası:

Wnk80ma

Bizimle İletişim

Bir İndirim İste

Ürün Ayrıntıları

Ölçülen medya:

Su, hava, gaz, buhar

Konut malzemesi:

304SS, 316SS

Kesinlik:

%0.5 FS

Basınç aralığı:

10kpa, -100kpa ... 70mpa

Uygulamalar:

Su Hava Soğutucu HVAC, otomobil

Çıkış sinyali:

4-20mA, 0.5-4.5V, 0-10V, 3.3V, I2C, Rs485

Basınç türü:

Ölçüm basıncı, mutlak basınç, sızdırmazlık basıncı

IP Derecelendirmesi:

IP65

Vurgulamak:

0-10bar water pressure sensor

1/8 NPT pressure transducer

4.5V air gas sensor

Ödeme ve Nakliye Şartları

İlgili Ürünler

video

Su Altı İçin 10 bar Yağ Basınç Sensörü 5V G1/4 150Psi Basınç Dönüştürücü

En İyi Fiyatı Alın

video

WNK 0-10bar 150Psi Npt 1/8 0.5-4.5V Hava Gazı için Su Basınç Sensörü Transdüseri

En İyi Fiyatı Alın

video

WNK Water Treatment Gas Pressure Sensors 4-20mA Pressure Transducer

En İyi Fiyatı Alın

video

4-20ma 1/4 1/8 NPT Vakum Yağı Hidrolik Basınç Sensörü Dönüştürücü 100 Psi 150 Psi

En İyi Fiyatı Alın

Bizimle İletişim

86-551-65369655

Şimdi iletişime geçin

Ürün Tanımı

Product Description

Oil Pressure Sensor for 0.5-4.5V 4-20ma

Applicable media	Liquid, gas and steam
Pressure range	0-60Bar/ -1-700Bar
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, absolute pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%FS 1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)

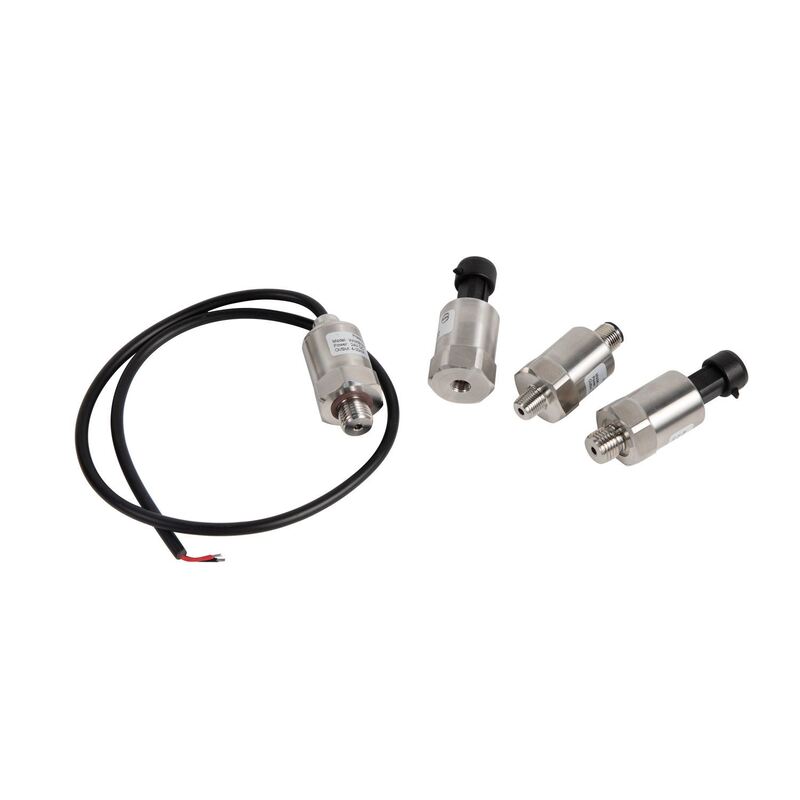

Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

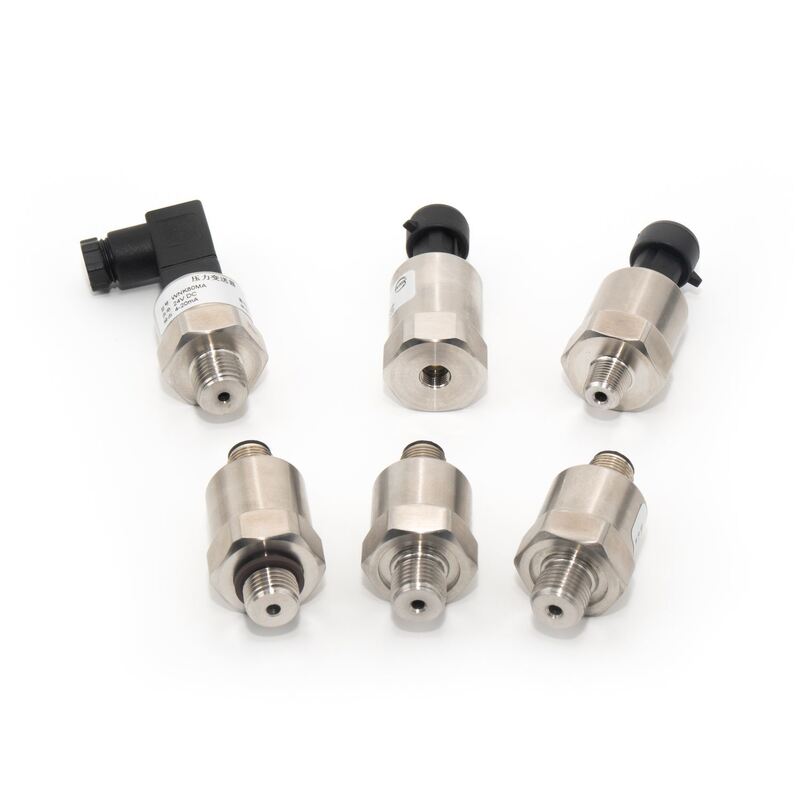

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.

Product Application

What role does the sensor play in the air compressor?

The compressor (compressor), as the heart of the refrigeration system, is a driven fluid machine that lifts low-pressure gas into high-pressure gas. The low-temperature and low-pressure refrigerant gas sucked from the suction pipe is compressed by the rotation of the motor to discharge the high-temperature and high-pressure refrigerant gas to the exhaust pipe to provide power for the refrigeration cycle. Thus, a refrigeration cycle of compression → condensation (exotherm) → expansion → evaporation (heat absorption) is realized. The compressor is divided into piston compressor, screw compressor, centrifugal compressor, linear compressor and so on.

During the work, the actual responsibility of the compressor is to increase the pressure and increase the state of the suction pressure to the state of the exhaust pressure. Compression ratio is a technical expression of pressure difference, which means the absolute pressure on the high pressure side divided by the absolute pressure on the low pressure side. The compression ratio must be calculated using an absolute pressure value. In order to avoid making the calculated value of the compression ratio negative, the absolute pressure must be used instead of the gauge pressure when calculating the pressure ratio. It makes sense to use an absolute pressure value to make the compression ratio calculation a positive value.

Large central air conditioning, refrigeration equipment, in order to achieve automatic control of the machine, the lowest energy consumption ratio, the operation of the equipment needs to be fully monitored, such as temperature, refrigeration medium pressure.
The pressure sensor mainly measures the pressure of the refrigerating medium online on the refrigerating equipment, and transmits the pressure to the control system of the main machine in the form of electrical signals, so as to reflect the compression operation state of the equipment, to realize the automatic control of the product, and to reflect the consumption of the equipment as soon as possible.
