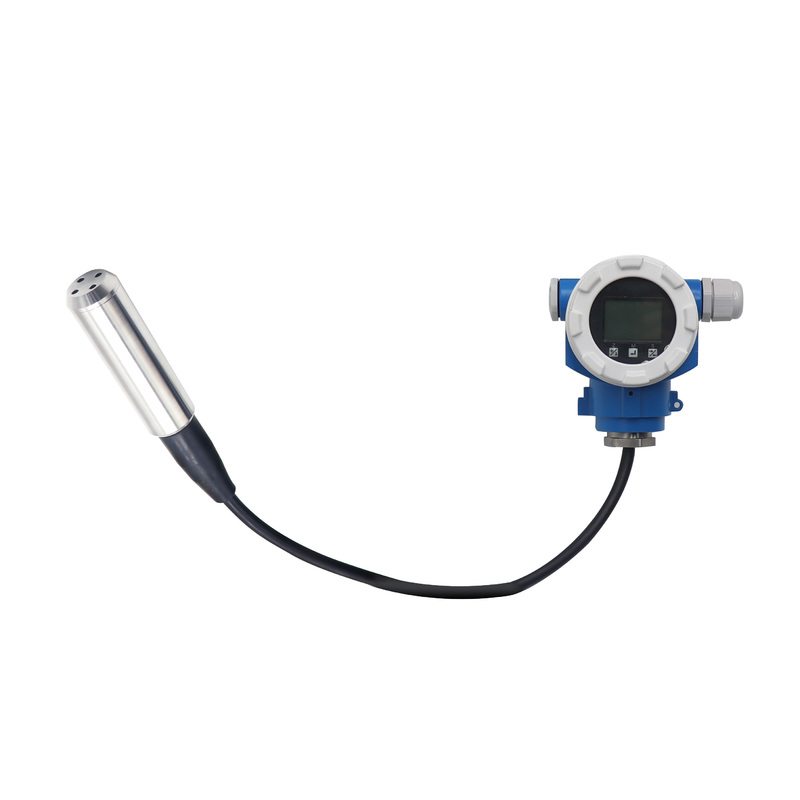

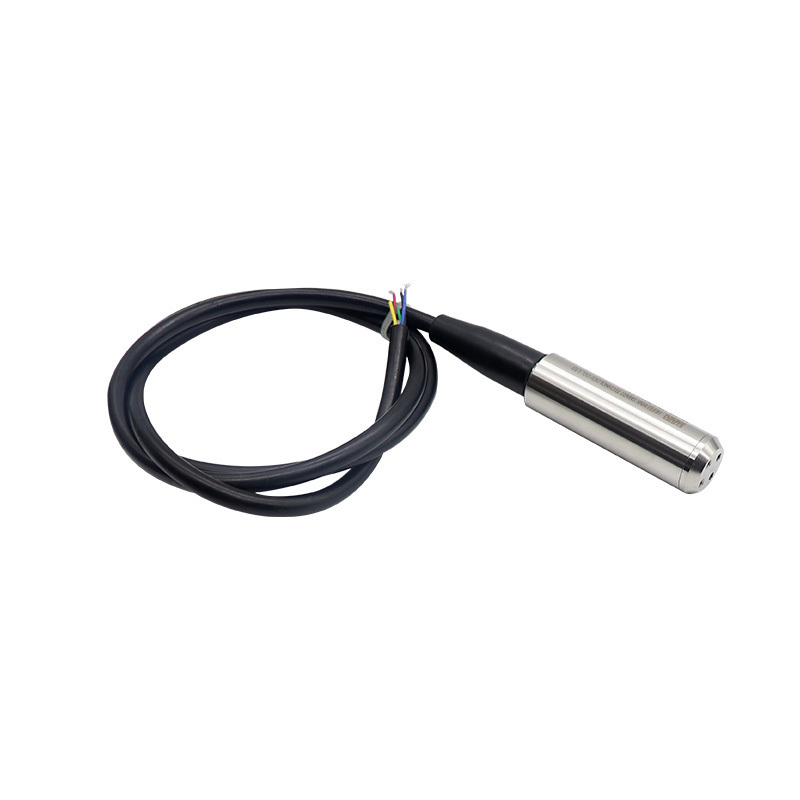

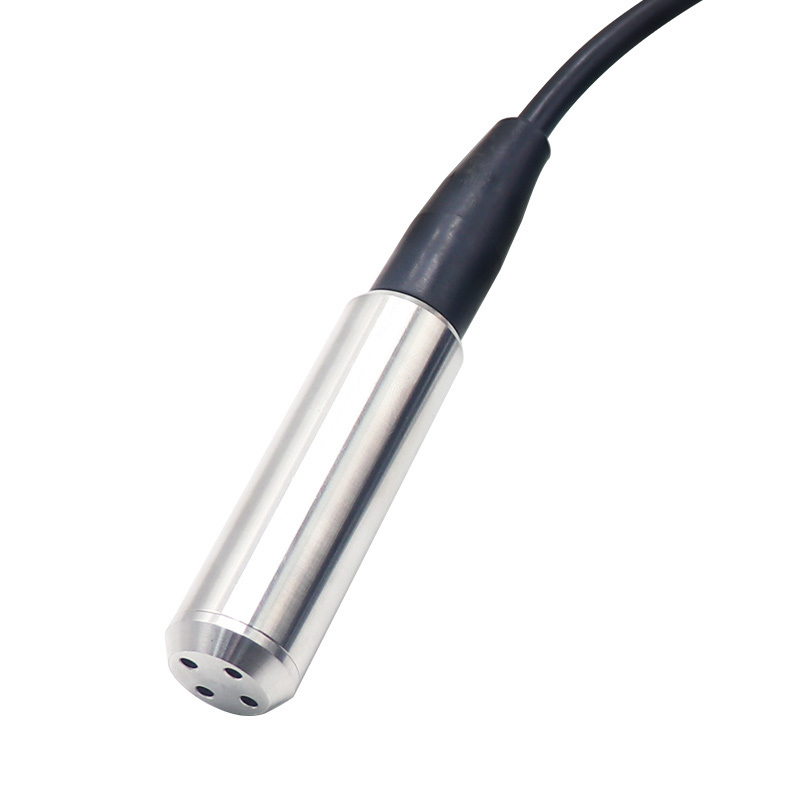

Name: ATEX Explosion Proof IP68 Submersible Water Tank Level Sensor With 4~20mA RS485 Output
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-TT
Price: 42.00 USD
Availability: InStock

Evde > Ürünler > Su Seviye Transmitteri >

ATEX Explosion Proof IP68 Submersible Water Tank Level Sensor With 4~20mA RS485 Output

ATEX explosion proof water level sensor

submersible water tank level transmitter

RS485 output water level sensor

Menşe yeri:

Anhui, Çin

Marka adı:

WNK

Model numarası:

WNK8010-TT

Bizimle İletişim

Bir İndirim İste

Ürün Ayrıntıları

Garanti:

1 yıl

Özelleştirilmiş Destek:

OEM, ODM

Basınç aralığı::

0 ... 2 ~ 200 metre

Çıktı:

4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V

Kesinlik:

%0.2 FS,%0.5 FS,

Güç kaynağı:

12~36Vdc

Koruma sınıfı:

IP68

Uygulama:

Yağmur suyu, içme suyu, atık su, kanalizasyon, deniz suyu

Konut malzemesi:

304SS, 316L

Çalışma sıcaklığı::

-40~85 ℃

Tip:

Ölçmek

OEM hizmeti:

OEM, ODM, özelleştirme mevcut

Liman:

Şanghay/Ningbo

Vurgulamak:

ATEX explosion proof water level sensor

submersible water tank level transmitter

RS485 output water level sensor

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Fiyat

$35.00 - $50.00/Pieces

Ambalaj bilgileri

Her biri tek tek bir kartona, köpüklü koruma olarak ayarlandı. Sonra Usta Karton'a

Teslim süresi

5-8 iş günü

Ödeme koşulları

T/T, Western Union, MoneyGram, PayPal

Yetenek temini

2000 Parça/Ayda Parça Basınç Sensörü

İlgili Ürünler

video

WNK ATEX Explosion Proof LCD Display Liquid Level Sensor With 4-20mA for Water Tank

En İyi Fiyatı Alın

video

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

En İyi Fiyatı Alın

video

WNK Submersible Hydrostatic Water Level Sensor Probe for River Tank Liquid Level Transmission Pressure Transmitter

En İyi Fiyatı Alın

video

316L Stainless Steel 4-20mA RS485 1-10V Liquid Level Transmitter Submersible Water Diesel Fuel Tank Level Sensors

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by
customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Applicable Media	Liquid, Water
Accuracy	≤ ±0.2%FS,
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68
